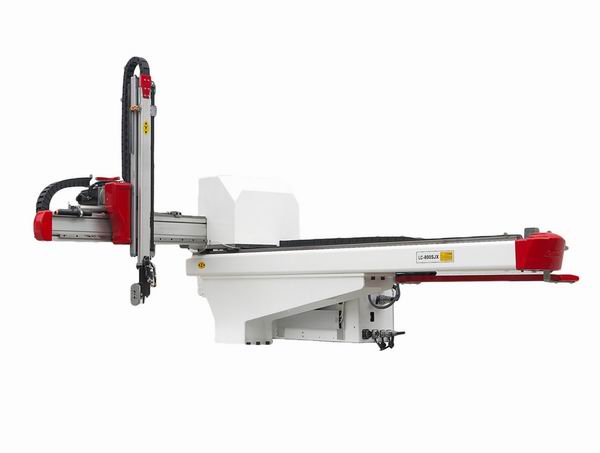

LC-800JX
Product Details:
Body structure
The horizontal shaft and the vertical shaft are driven by imported AC servo motor. The horizontal arm, the pulling arm and the vertical arm adopt imported high-rigidity linear slide rail and light-weight and high-rigidity aluminum alloy structure beam, thus meeting the requirements of high taking-out speed, stable and smooth action, high efficiency, small vibration and long service life.
Fixture loop
Reserving an air pressure pipeline, a detection signal and absorption and embrace loops, the fixture can be taken out by absorbing, clamping and embracing. The taking-out requirements of various finished products can be met. The side orientation mechanism can be taken out in cooperation with a male die or female die. The rotation angle is 90°.
| Main Specification | ||||||||||||||
| Model | （T）I.M.M.range | （mm) Vertical stroke | （mm) Crosswise stroke | Type | （sec) Min take time | （KG） Max load | （sec) Dry cycle time | （nl/cycle) Air consumption | （KG） Net weight | （mm) Swing stroke | Drive system | （MPa) Air power | （kgf/c㎡) Working air pressure | Power |
| LC-800JX | 150-280 | 800 | 600 | Single-stage | 1.5 | 5 | 4 | 5 | 170 | 1300 | AC Servo moto | 0.6-0.8 | 5﹣7 | AC220V (±10%) 50/60HZ |
| Model | A | B | C | D | E | F | G | K | L | M | Z |
| LC-800JX | 1850 | 1800 | 1100 | 1100 | 280 | 150 | 350 | 70 | 550 | 800 | 300 |
