Horizontal rotation mechanism
The rotation mechanism is convenient to adjust when the placement direction is changed, only by adjusting the screw. With the rotation mechanism, the fixture can rotate 90° and places the finished product.

Mold change adjusting mechanism
The fixed handle needs to be loosened during mold change. The mechanism can rotate 90° to improve the mold change efficiency.

Fixture loop
It can be used for absorbing the multi-cavity finished product and clamping the water gap.

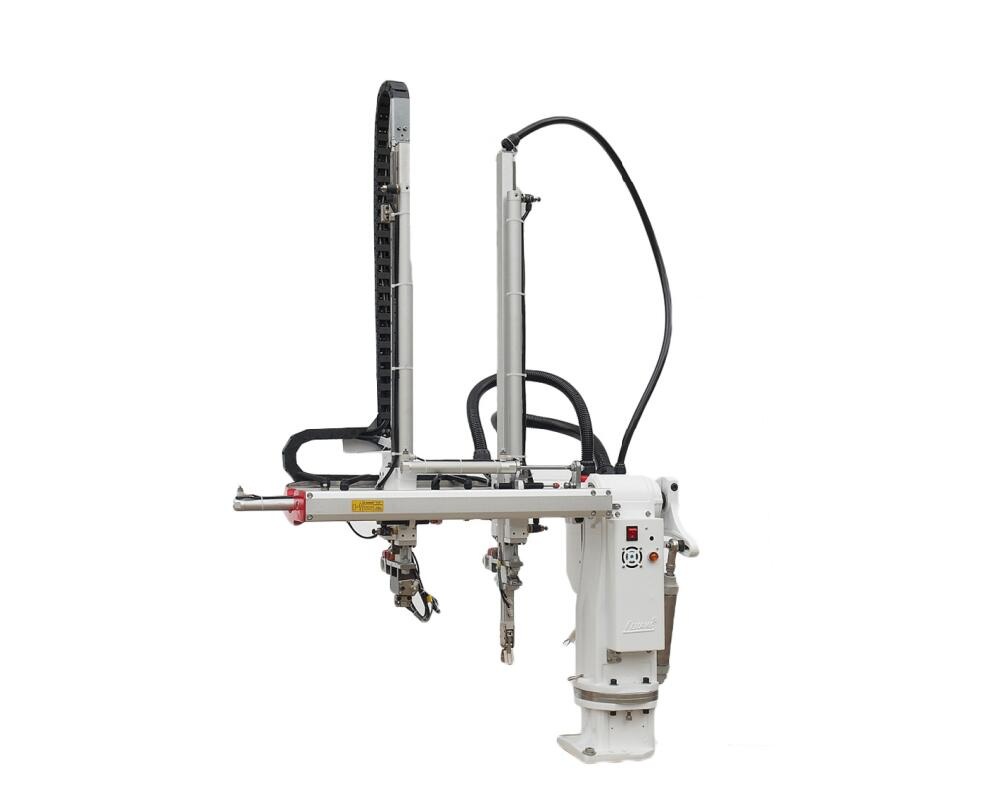

Arm structure
1. The light-weight and high-rigidity aluminum alloy structure beam is matched with a linear bearing and a high-rigidity bearing steel guide rail.
2. Light structure, good wear resistance, no deformation, small vibration, long service life
3. All-mechanical aluminum alloy structure

Vertical stroke(mm)P:600/R:600
Crosswise stroke(MM)P:75/R:75
Swing AngLe()3
Dry cycle time(sec.)7
Air consumption(nl/cycle)15
Air power(MPa)0.6-0.8
Workingd air pressure(MPa)0.5
Net weight(Kg)45
L×W xH(mm)1050*280*1200
